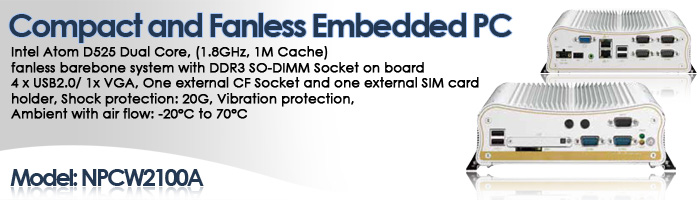

NPCW2100A series are based on the cutting edge technology of the Intel® Atom™ Dual Core D525 processor. With Atom™ Dual Core D525 CPU, DDR3 667/ 800 SO-DIMM and multiple I/O ports, NPCW2100A series can be utilized within industrial automation, self-service machines like KIOSK check-in machines, recycling machines as well as factory automation etc. Other features of this versatile series include three Intel® Gigabit LAN ports, four RS-232 COM ports, two RS232/ 422/ 485 COM ports, four USB2.0, one VGA port, one GPIO port, and one speak out. In terms of storage, SATA HDD/ SSD or front accessible CF card are available for deployment. The NPCW2100A Series has a wide DC input range which varies from 9V to 36V and is therefore designed to meet most application requirements.

• On-board Intel® Atom™ Dual Core D525 (1.8GHz, 1M Cache) processor
• One DDR3 SO-DIMM socket, DDR3 800 2G memory module support max.
• Dual Intel® 1000/ 100/ 10 Mbps LAN ports
• 4 x USB2.0/ 1x VGA
• 1 x DB15 GPIO connector
• 4 x RS232 and 2 x RS232/ 422/ 485 with auto flow control
• One external CF Socket and one external SIM card holder
• 9 ~ 36V DC input
• ATX power mode

Main Board
- NISB 2100A
- On-board Intel® Atom™ D525 Dual Core processor, 1.8GHz, 1M
Cache
- Intel® ICH8M PCH
Main Memory
- 1 x DDR3 SO-DIMM socket, support up to 2 GB DDR3 800 SDRAM memory module, unbuffered and non-ECC
Expansion
- 1 x Mini-PCIe socket onboard
Default: support optional Wi-Fi module Option: support optional 3.5G module
I/O Interface-Front
-  ATX Power on/ off switch
-  HDD Access/ Power status LEDs
-  2 x USB2.0 ports
-  2 x Serial port (RS232)
-  1 x external SIM card holder
-  1 x DB15 GPIO connector
-  2 x Antenna holes (Either optional Wi-Fi or Mobile wireless module)
